Simax100 industrial sawing machine
Robust machine for precise cutting of medium diameter bars.
15-110 mm
Machinable diameter
24/24 e 7/7
Working 24/7
2-12" sec
Cutting Time
Up to 100 m²
Blade Life
10-1500 mm
Cuttable length
3-12 m
Machinable length

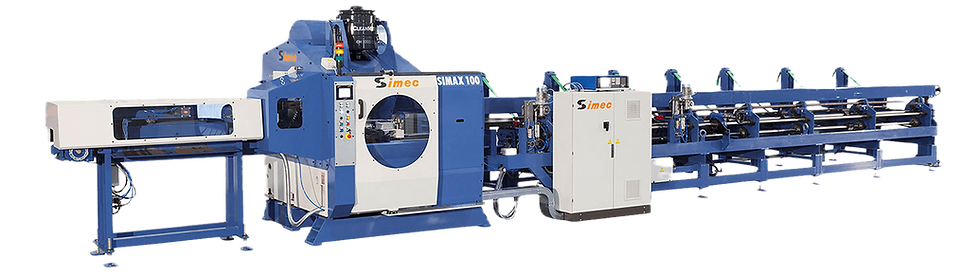

Simax100
The SIMAX 100 is an industrial disc saw designed to cut solid bars with round diameters from 15 to 110 mm and square sections from 20x20 to 75x75 mm, ensuring high performance even on complex materials. Its robust 5,000 kg structure guarantees stability, reliability and low vibration during each work cycle.
The cutting unit, sliding on roller skids and driven by a brushless motor with recirculating ball system, allows clean, repeatable cuts and an excellent surface finish, reducing rework to a minimum.
Designed for high-precision machining, the SIMAX 100 is an ideal solution for cutting solid bars in an industrial environment, with a perfect balance of mechanical strength and cutting quality.
Do you want more information?
Contact us. We will get back to you as soon as possible.
The machine
1
Simax100
Simax 100 cutting unit
2
Automatic Beam Loader for Bars
Automates the loading process
3
Automatic Unloader
Standard Multi-Position Unloader
4
Swarf Evacuator
Clean working environment by removing debris
5

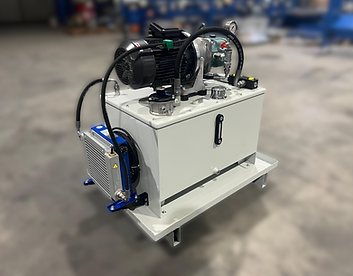

Hydraulic Power Unit
Power and control for precise and reliable movements
6
Barriers and Protections
Regulations and Safety for Every Operator
Automatic Loader
Beam loading system feeds the cutting line continuously, reducing cycle times and optimising the handling of incoming material.
Simax cutting unit
Fully automatic high-performance widia disc saw. Simax are built to work 24 hours a day 7 days a week, guaranteeing precision cutting over time.

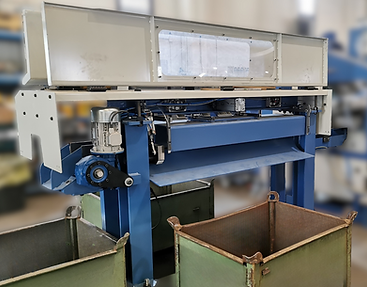

Automatic Multiple Discharger
Automatic system that allows the operator to program unloading destinations according to predefined positions, providing flexibility and precision in handling parts before the cutting cycle begins.
Details
Industry 5.0

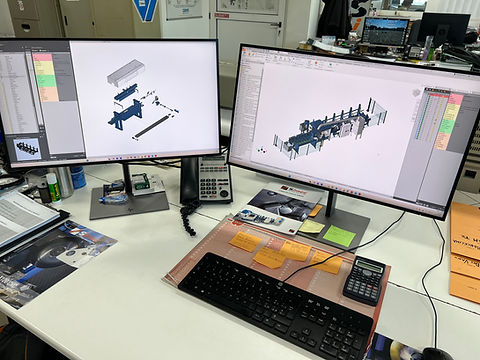

Our industrial bar saws are designed according to the principles of Industry 5.0, where advanced technology is combined with human experience to create smarter, more customised and sustainable solutions.
We offer connected and integrated systems in production processes, capable of real-time monitoring and optimising performance, reducing costs and improving quality.
The interaction between automation and operator allows for more conscious management, predictive maintenance and greater reliability, enhancing the human role at every stage of production.
Cutting unit
Charger
Unloader
Technical data
H
1,110 [mm].
Cutter deck height
D
11,000 [mm]
Total length
G
2,350 [mm].
Simax100 height
C
6,000 [mm]
Loader length
F
2.125 [mm].
Width_Simax100
B
2,450 [mm].
Simax100 length
E
3,245 [mm].
Total Width
A
2,500 [mm].
Unloader length
The dimensions refer to a standard template.
They will be checked and, if necessary, modified at the design stage according to customer requirements.
Dimensions
Cuttable materials
Sectors
Spare parts available from stock
We guarantee the availability of all spare parts essential for the proper functioning of our machines.
.
From mechanical and electrical components to consumables, we offer a quick and efficient service to minimise downtime and keep your production running.
Immediate availability of major spare parts
.
Quick assistance for orders and information
Original components for reliability and durability
